How to Troubleshoot an Electric Dab Rig That’s Not Working

Is your e-rig refusing to power on, not charging, or heating but barely producing vapor? Before you order a new atomizer or email customer support, there are a few simple fixes worth trying at home.

Many owners run into the same basic problems with popular e-rigs such as the Puffco Peak Pro, Dr. Dabber Switch, Core 2.1 and Ispire. Dirty contacts, an improperly seated atomizer, an overloaded chamber, or a faulty charging cable can make a perfectly functional rig seem broken.

The good news is that you can usually rule out these simple causes before replacing parts or sending the device in for repair.

Below is the order I’d actually troubleshoot in, starting with the most common and easiest fixes. Details vary by brand, but the basic logic is largely the same.

Find Your Symptom

What you’re seeing	Jump to
No response when you press power	Symptom 1
Powers on but won’t charge	Symptom 2
Powers on, atomizer won’t heat	Symptom 3
Light is blinking, no idea why	Symptom 4
Heats, but vapor is weak	Symptom 5
Burnt or harsh taste	Symptom 6
Shuts off mid-session	Symptom 7

⚡Do These 8 Things First

Step	Action
1	🔋 Check the battery charge — plug in with the original cable, see if the charging light comes on
2	🔌 Try the original cable and a different outlet — swap in a known-good compatible cable too
3	💡 Power on and check the screen or light — does it respond normally?
4	🔧 Remove and re-seat the atomizer — snug, not cranked down
5	🧹 Clean the contact pins with isopropyl alcohol — let everything dry completely
6	🔍 Check for reclaim buildup — around the atomizer and heating chamber
7	💨 Inspect the glass and air path for clogs — check the water level too

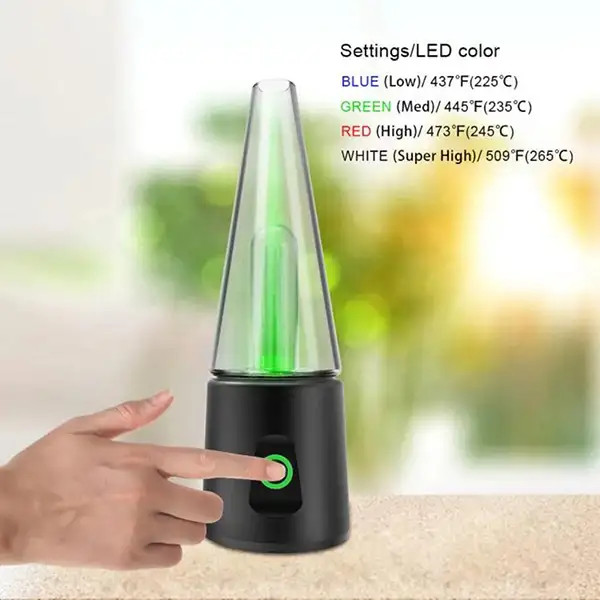

8	🌡️ Confirm your temperature setting — a low temp won’t produce vapor for every material

⚠️ Steps 4 and 5 are worth checking first, since connection issues are a common cause of e-rig problems.

If it still won’t work after these eight steps, move on to the specific symptom below.

🔌Symptom 1: No Response When You Press the Power Button

Start with the battery. Plug in the original cable, charge for 20-30 minutes, then check the light.

If the charging light doesn’t come on:

• Try a different working cable
• Try a different wall outlet or USB adapter
• Shine a flashlight into the charging port to check for dust, dried concentrate or gunk

If you’ve swapped the cable and the outlet and the light still won’t come on, it’s likely the battery or charging circuit — not something you can fix at home. On brands like Puffco and Dr. Dabber, you don’t want to open the battery compartment yourself. That voids the warranty immediately.

🔋Symptom 2: It Powers On But Won’t Charge

If it powers on, the battery isn’t completely dead. The problem is usually in the charging chain:

• Cable: check for fraying or a loose connector
• Charging port: look for debris inside, and gently wipe with a dry cotton swab
• Battery age: if the device is two years old or more, capacity loss is normal
• Charging indicator: does anything light up at all when plugged in?

If the battery gets unusually hot, swells, or looks damaged while charging, stop immediately and contact the manufacturer. Don’t keep testing it.

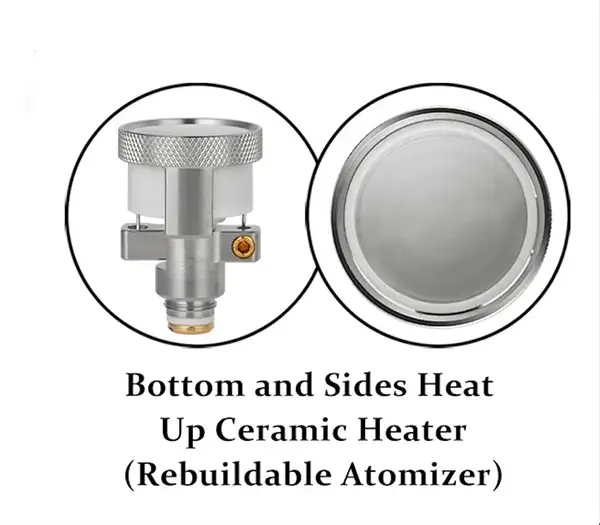

🔥Symptom 3: It Powers On, But the Atomizer Won’t Heat

This is one of the most common problems with e-rigs. The device turns on, the light works, you load a dab, wait fifteen seconds, and get nothing.

Don’t buy a new atomizer yet. Go in this order:

1. Remove the atomizer and check the contact pins for bends or debris.
2. Clean the contacts with isopropyl alcohol and let everything dry completely.
3. Re-seat the atomizer — snug, with no wobble.
4. Check for reclaim buildup around the atomizer and heating chamber.
5. If the rig powers on but the atomizer still won’t heat after cleaning and re-seating, a faulty heating cup or internal atomizer part may be the cause. Replace the heating cup or repair kit if needed.
6. Try a working atomizer if you have one. If another compatible atomizer heats normally, you’ve narrowed the problem down to the original atomizer rather than the battery or main device.

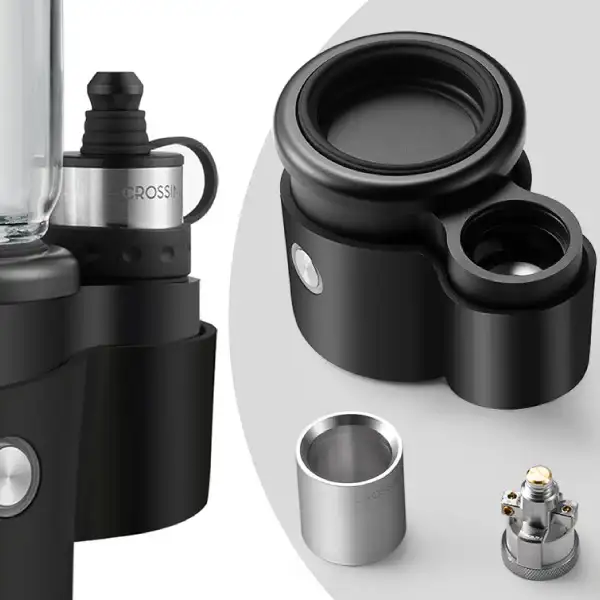

If a known-good compatible atomizer still won’t heat, the problem may be with the base, contact points, or internal circuitry rather than the atomizer itself. If the working atomizer heats normally, you’ve narrowed the problem down to the original atomizer.

On many electric dab rigs, atomizers are consumable parts that eventually need to be replaced. Common signs that it’s time for a replacement include an atomizer that won’t heat, repeated error messages, weak vapor even after a thorough cleaning, or visible cracks or damage to the heating chamber.

If you need replacement parts, you can browse our Dab Accessories collection.

🚨 Symptom 4: The Light Is Blinking and You Don’t Know Why

Blink patterns are brand- and model-specific. There’s no universal code.

On a Puffco Peak Pro, for example, a blinking red light usually points to an atomizer connection or temperature problem, not a dead battery. Dr. Dabber’s light codes vary by model — the Switch and the Boost don’t blink the same way. Core and Ispire units each have their own patterns too.

Don’t guess. Check the manual or the brand’s official error code page first. If you can’t find it, do two things before anything else: re-seat the atomizer and clean the contact pins. A blinking light is often related to the atomizer connection, so it’s worth checking that before assuming there’s a major hardware problem. In many cases, re-seating the atomizer is enough to clear the error.

💨 Symptom 5: It Heats, But Vapor Is Weak

In this case, the battery and atomizer are usually fine. The problem is load size or airflow.

You loaded too much. Overfilling the chamber presses against the heating element and blocks airflow. Use less — about the size of a grain of rice up to a small pea, depending on your chamber style.

The temperature is too low. Lower temperatures keep flavor sharp, but the vapor will be lighter. If you want thicker vapor, bump the temperature up slowly. Avoid cranking it straight to max heat — that burns your concentrate and speeds up residue buildup.

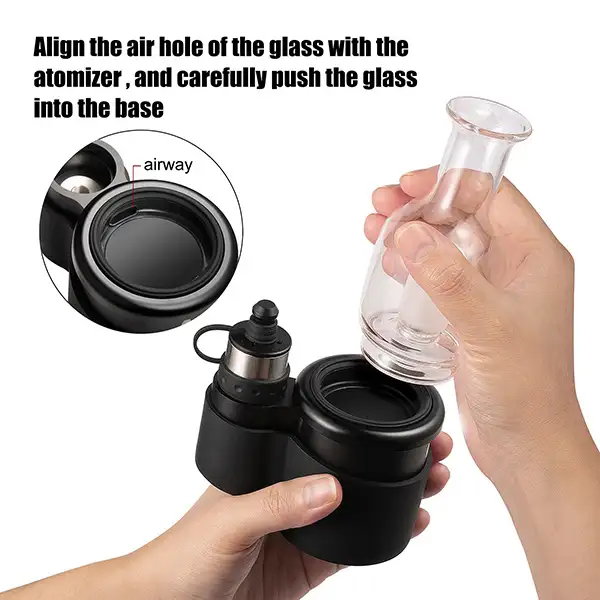

The air path is clogged. Check the glass bubbler and air channel for hardened resin, blocked air holes, and too much water. If the water level is above the fill line, your draw gets tight and vapor drops off.

👅 Symptom 6: Burnt or Harsh Taste

Clean first, adjust temperature second, suspect the atomizer last.

• Clean the chamber and all removable glass parts per the manual
• Check whether you’ve been running it at high temps for a long time
• Look for scorched residue inside the atomizer

If the taste stays harsh after a full clean and a temperature adjustment, the atomizer is likely worn out. Long-term high heat accelerates residue buildup and shortens the life of the heating chamber.

⏻ Symptom 7: It Shuts Off Mid-Session

Check the battery level first. Many devices cut power when the battery drops too low — that’s a protection feature, not a fault.

If the battery is full and it still shuts off, check:

• Is the device too hot? Overheat protection
• Is the atomizer connection loose?
• Are the contacts dirty?
• Is the battery degraded?

If it’s fully charged, cooled down, and still shutting off repeatedly, stop using it and contact the manufacturer. Internal electrical issues get worse if you keep testing them.

When to Replace the Atomizer

Some signs mean it’s probably time for a replacement. Others are worth troubleshooting a little longer first.

Replace it if:

• It stops heating completely, even after a re-seat and contact cleaning
• You keep getting atomizer error messages after cleaning the pins
• The chamber has visible cracks or physical damage

Try one more clean and a temperature adjustment first if:

• Vapor stays weak after a thorough clean
• The taste stays burnt no matter how you clean or adjust the temperature

If the atomizer is heavily used and performance has noticeably dropped, replacement may be the simplest fix. On many electric dab rigs, atomizers and heating components are consumable parts and eventually wear out.

One thing to rule out first: if a known-good compatible atomizer also won’t heat, the problem is more likely with the base, contact points, or internal circuitry. Don’t buy a replacement atomizer until you’ve tested that.

Compatibility matters. Puffco atomizers don’t fit Dr. Dabber devices, and different generations within the same brand aren’t always cross-compatible. Check your specific model before ordering.

Should You Reset or Update Firmware?

Some newer devices support app connectivity and firmware updates, including certain Puffco models.

Finish the basic troubleshooting first — battery, charging, atomizer seating, airflow — before attempting any update. Don’t install unofficial firmware or modify the hardware. You can brick the device, and it voids the warranty.

When to Contact Customer Support

If basic troubleshooting doesn’t fix it, contacting the manufacturer or seller is the safest move.

Don’t attempt repairs yourself if:

• It won’t power on after a full charge
• The battery or charging port shows visible damage
• Error messages keep recurring
• The atomizer still won’t heat after correct installation
• The device gets extremely hot during use
• The charging port is broken
• liquid got inside the electronics
• You suspect an internal electrical fault

If it’s still under warranty, don’t open the device. Doing so typically voids the claim.

Final Thoughts

Most “broken” e-rigs come down to contact issues, overloading, clogged airflow, or the wrong cable. The number that genuinely needs a new atomizer or a repair is lower than it looks.

Stick to those habits: wipe the contact pins after each session, don’t pack the chamber full, use only the original or a confirmed-compatible charging cable, and keep water away from the electronics. With basic care, many rigs can run for a long time without major issues.

FAQ

My Puffco Peak charged all night and still blinks red. Is my battery dead?

Not necessarily. Swap the cable, try a different outlet, and clean the atomizer contact pins first. A blinking red Peak is often an atomizer connection issue, not a battery issue. If it still blinks after a cable swap and a pin cleaning, then look at the battery or the base.

My e-rig heats but barely produces vapor. Is the atomizer dead or did I load too much?

Try a smaller load and a higher temperature first. If that doesn’t help, check the air path for clogs. Only then suspect the atomizer. Overloading and clogged airflow are the two most common things mistaken for a dead atomizer.

How often should I replace a Dr. Dabber Switch atomizer?

There’s no fixed number. It depends on frequency of use, temperature settings, and cleaning habits. The induction cup lasts longer than a Puffco chamber, but performance drops over time. Replace it when it won’t heat, tastes off, or stays weak after a clean.

My e-rig is blinking but I lost the manual. What do I do?

Check the brand’s official site for the error code for your specific model. If you can’t find it, do two things first: re-seat the atomizer and clean the contact pins. Most blink errors relate to connections. If that doesn’t work, contact support with your model and the blink count.

Can I fix an e-rig myself?

Replacing an atomizer, cleaning contacts, and re-seating glass parts are all fine to do yourself. Don’t open the battery compartment or internal electronics unless the manufacturer explicitly tells you to. It voids the warranty and carries safety risks.

How can I prevent e-rig problems?

Wipe the contact pins after each session, don’t overload the chamber, use only the original or confirmed-compatible cable, keep water away from the electronics, and follow the manual for cleaning and storage. That covers most common issues.
